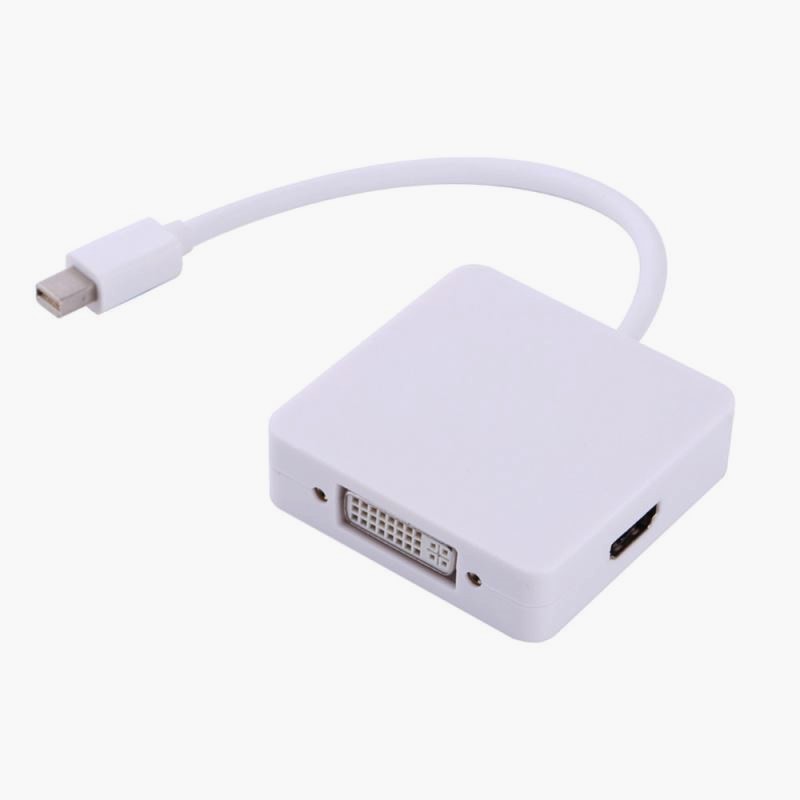

Description
This product with three output ports, and you can choose one of them to use at a time as you demand, the functions of the port as followings:
- DVI output, connect the DVI devices using a DVI cable.
- HDMI output, connect the HDMI devices using a HDMI cable.
- VGA output, connect the VGA devices using a VGA cable.
- Mini Display Port, connect Mac Book, Mac Book Pro, or Mac Book Air.
Features:
- Support Mini Display Port 1.1a Dual-mode input.
- The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010)
- Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color.
- Automatic detect the display by plugging and unplugging it.
- Powered from Mini Display Port source.
Specifications:
- Size: 6.0 x 6.0 x 1.5 cm
- Cable length: 18cm
- Input Signal: Mini Display Port 1.1a
- Output Video:HDMI/DVI/VGA

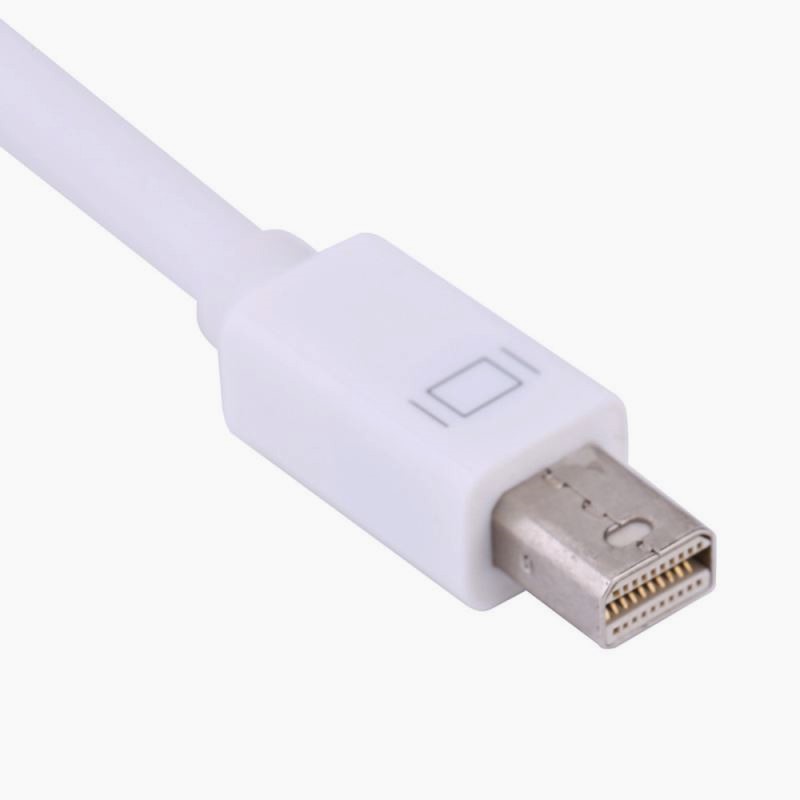

- Input: Mini Display Port Male 20pin
- Output: HDMI Female Type A 19pin
- Connector:DVI Female (24+1) VGA Female 15Pin
- Vertical Frequency Range: 50/60Hz
- Video Amplifier Bandwidth: 2.25Gbps/225MHz
- HDMI/DVI/VGA: 480i/480p,576p,720p,1080i/1080p
- External Power Supply: No external power needed
- Power consumption (Max): 700mW
